True Online Double Conversion
TOWER DESIGN
Digital display LCD & LED
Built-in Isolation Transformer
Wide input voltage range and frequency tolerance
Power factor 0.8
1 phase In, 1 phase Out
Multi-protections such as overload, short-circuit, over-temperature, battery under voltage, battery overcharge
Transfer time 0 ms
Crest factor 3:1
Pure sine wave output
Automatic restart
Battery cold start function
Maintenance sealed lead acid battery
Back up 15-30 mins (depend on loads)
Extension battery (Optional)
Hardwired Terminal
Software monitoring
SNMP card (optional)
TISI standards 1291-2553(1),TISI standards 1291-2553(2), TISI standards 1291-2555(3),  ISO 9001, ISO 14001, CE, EN, FCC, RoHS
​Onsite Service & PM  (According to company policy)



2 Years Warranty
Free Onsite Service at Bangkok Metropolitan Region *Conditions are as specified by the company
Pick-up and delivery of the repair product for free with express delivery.
Service Center has ISO 9001:2015


ZIRCON
The Smart Power Solution ✨

​​​​​​​

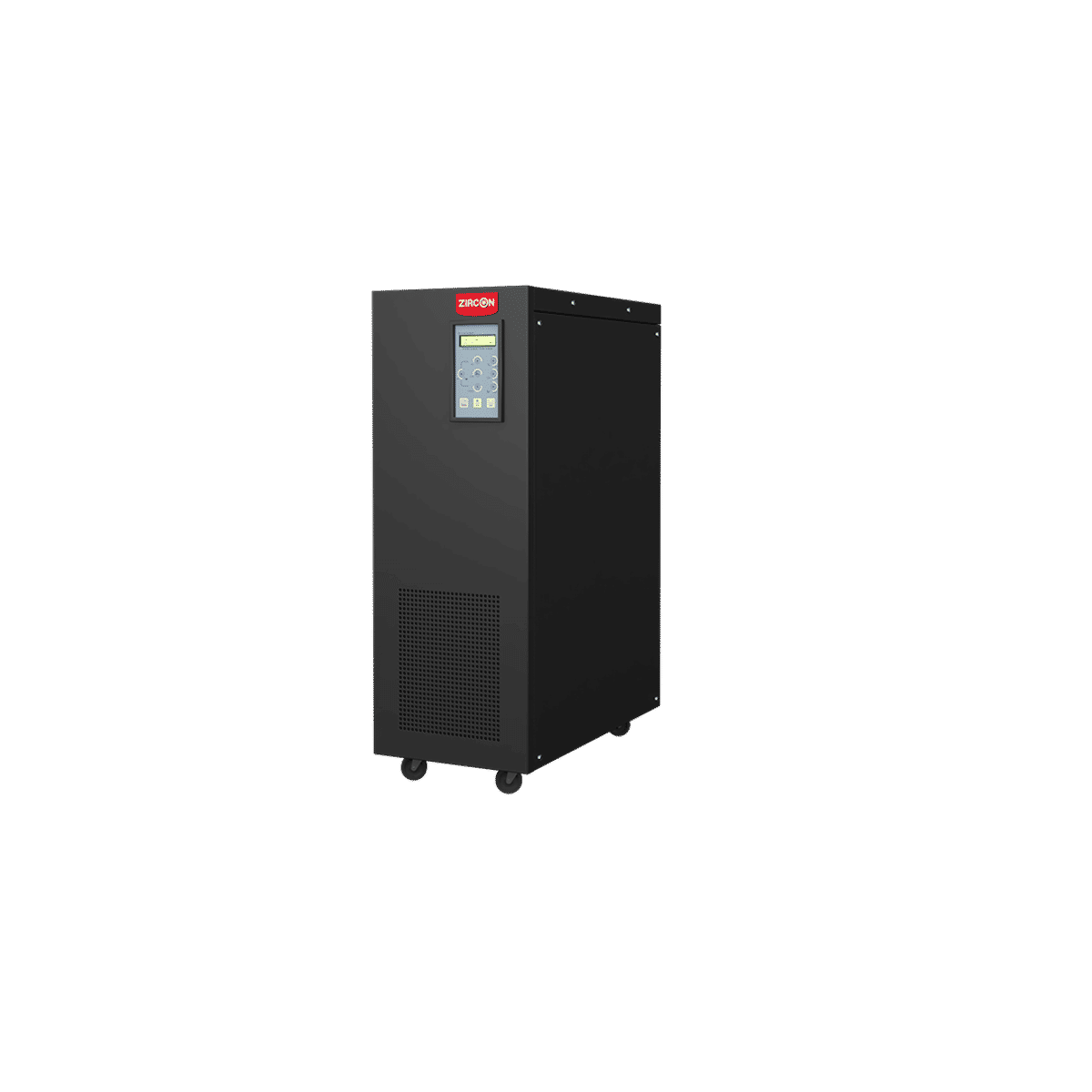

ZC - GP 20KVA

Input	Model Capacity (VA/W) Nominal voltage Operating voltage range Operating frequency range Power factor Max. input current(A)	ZC-GP 20KVA 20KVA /16kW 220/230Vac 165-275Vac 50/60Hz (+5%) >0.97 (with filter) 112
Output	Output voltage Output frequency Crest factor Efficiency Harmonic distortion (THD)	220Vac(+0.5%) /230Vac(+0.5%) 50/60Hz( + 0.5%) 3:1 (max) >88% <1.5%(linear load)
Battery	Battery voltage	192Vdc
SYSTEM FEATURES	Transfer time Overload Communication interface	Oms (Line mode - Battery mode) >125%: 1min, >150%: 200ms RS232, SNMP(optional), Dry contact (optional)
ENVIRONMENTAL	Operating temperature Storage temperature Humidity range Altitude Noise leve	0-40°C 25-55°C 0-95% (non-condensing) <1500m <55dB
PHYSICAL	Dimension WxDxH (mm) Net weight (S/H) (kg)	409 x 798 x 1044 200
STANDARDS	Safety EMC	IEC/EN62040-1; IEC/EN60950-1 IEC/EN62040-2;IEC61000-4-2;1EC61000-4-3;EC61000-4-4 IEC61000-4-5;IEC61000-EMC 4-6:IEC61000-4-8



All specifications subject to change without notice.
​​​​​​Custom-made specifications are acceptable.
​​​​​​​
​​​​​​​​​​​​​​

​​​​​​​

​​​​​​​
