True Online Double Conversion

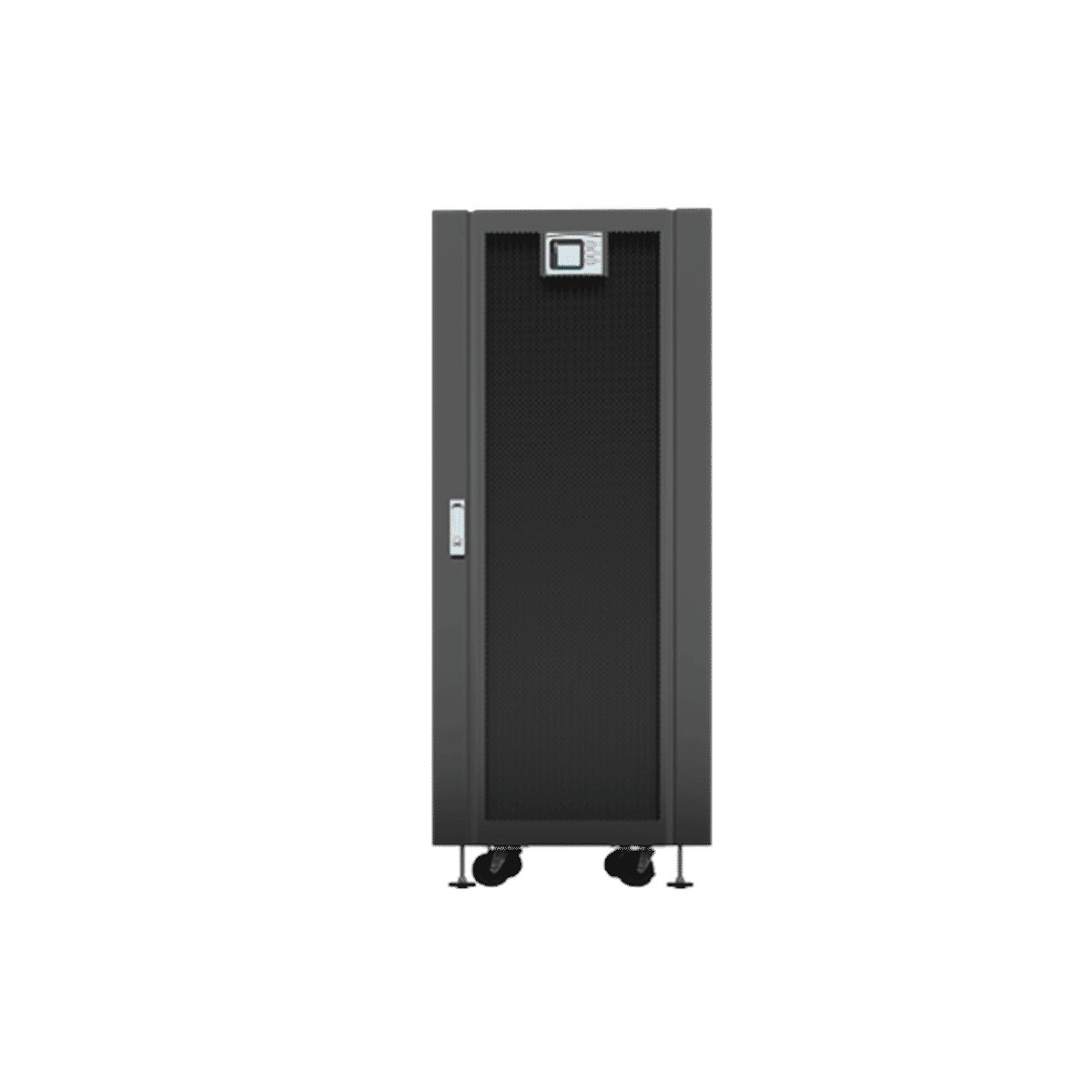

TOWER DESIGN
Digital display LCD & LED
Wide input voltage range and frequency tolerance
Power factor 0.9
3 phase In, 3 phase Out
Multi-protections such as overload, short-circuit, over-temperature, battery under voltage, battery overcharge
Transfer time 0 ms
Crest factor 3:1
Pure sine wave output
Automatic restart
Battery cold start function
Maintenance sealed lead acid battery
Advance Battery Management
Back up 15-30 mins (depend on loads)
Parallel redundancy
Extension battery (Optional)
Hardwired Terminal
Software monitoring
SNMP card (optional)
TISI standards 1291-2553(1),TISI standards 1291-2553(2), TISI standards 1291-2555(3),  ISO 9001, ISO 14001, CE, EN, FCC, RoHS
Onsite Service & PM  (According to company policy)


2 Years Warranty
Free Onsite Service at Bangkok Metropolitan Region *Conditions are as specified by the company
Pick-up and delivery of the repair product for free with express delivery.
Service Center has ISO 9001:2015


ZIRCON
The Smart Power Solution ✨
​​​​​​​


Specifications     ZC- HIP



CAPACITY	VA/Watts	120KVA/108KW
Input	Normal voltage Operating Voltage Range Operating frequency range ​Power factor Harmonic distortion (THDi) Bypass voltage range Generator input	380/400/415VAC ,(3Ph+N+PE) 208-478vac ​40Hz-70Hz 0.99 2%(100%Non-linear load) Max voltage:+15%(optional+10%,+25%) Min voltage:-45%(optional-20%,-30%)frequency protection range:+/-10% Support
Output	Rated voltage Power factor Voltage Regulation Frequency Line Mode Frequency Batt Mode Crest Factor Harmonic distortion (THD) Efficiency & Wave Form	380/400/415VAC,(3Ph+N+PE 0.9 +/-2% +/-1% 50/60(+/-0.1%) Hz 3:1 <2% with linear load, <5% with non linear load >93% at normal mode , Pure sinewave
Battery	Battery Voltage Charge Current Maximum	Optional voltage : 384/408/432/456/480VDC 24A
System feature	Transfer time Overload line mode Overload batt. mode Overload bypass mode Short Circuit Overheat Low battery voltage Selfdiagnostics Epo (option) Batterry Noise Suppression Audible & Visual Status LED & LCD display Reading on the LCD display Communication Interface	0 MS. Lode <110% last 60min, <125%: last 10min, <150%: last1min, >150% shutdown UPS immediately Lode <110% last 10min, <125%: last 5min, <150%: last 5s, >150% shutdown UPS immediately Breaker 350A Hold Whold system Line mode: switch to bypass, backup mode : shutdown UPS immediately Alarm and switch off Upon power on and sofware control Shutdown UPS immediately Advanced battery management Complies with EN62040-2 Line failure , Battery low, overload, System fault Line mode, bypass mode, battery low, battery bad, overload & UPS fault Input voltage, output valtage, input frequency, output frequency, load percentage, battery voltage,Inner temp. RS230,RS485,parallel, intelligent slot, slot, relay card (optional), SNMP card  (optional)
Environmental	Operating tenperature Storage Temperature                 Humidity range Attitude	0 C - 40C -25 C - 55 C 0 - 95% (NON condensing) < 1500m
Physical	Dimension D X W X H (MM) Net Weight (KG)	780 x 600 x 1600 317
Standards	Safety EMC	IEC/EN62040-1;IEC/EN60950-1 IEC/EN62040-2;IEC61000-4-2;IEC61000-4-3;IEC61000-4-4;IEC61000-4-5;IEC61000-4-6;IEC61000-4-8



All specifications subject to change without notice.
​​​​​​Custom-made specifications are acceptable.
​​​​​​​
​​​​​​​​​​​​​​

​​​​​​​

​​​​​​​
