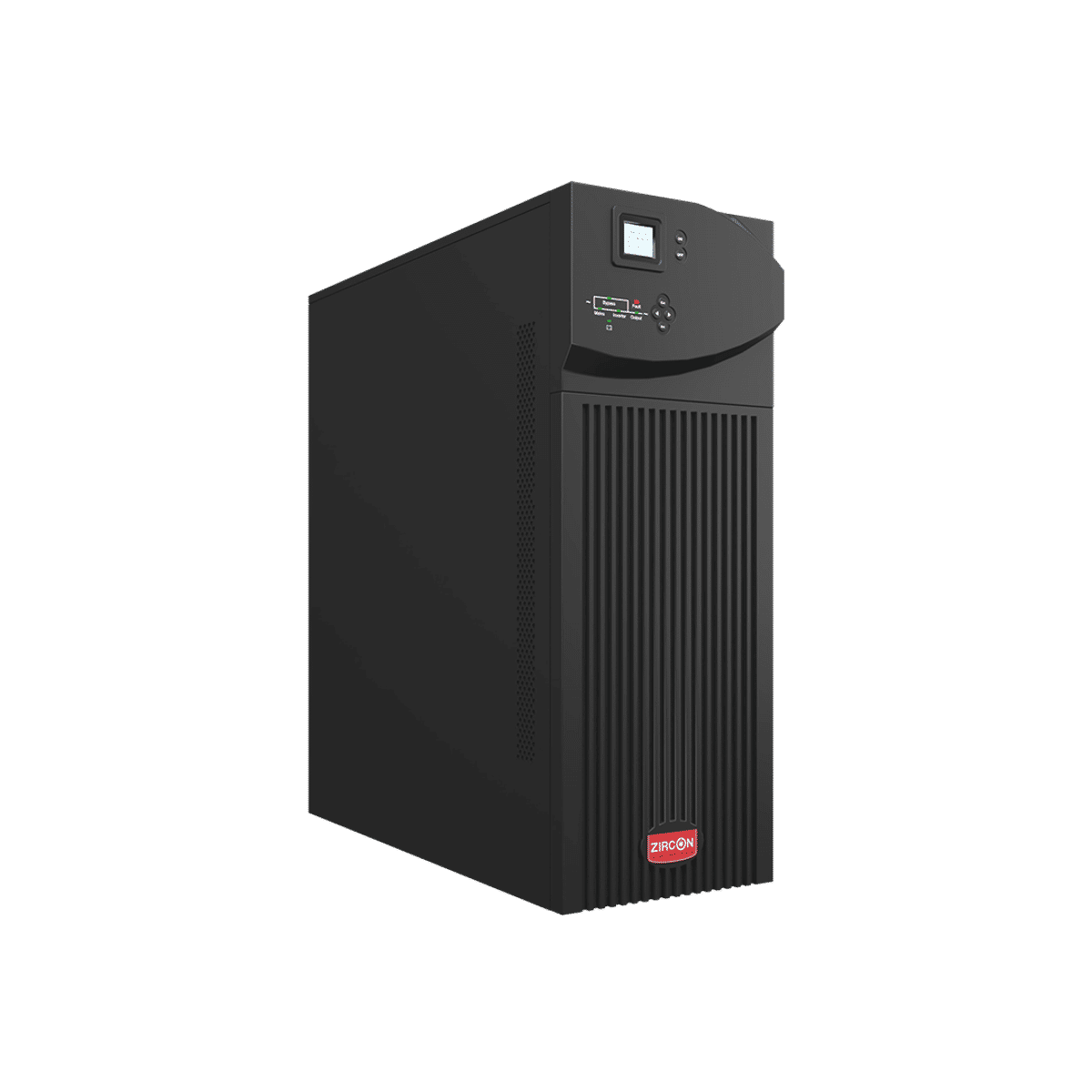

True Online Double Conversion
TOWER DESIGN
Digital display LCD & LED
Wide input voltage range and frequency tolerance
Power factor 0.9
1 phase In, 1 phase Out
Multi-protections such as overload, short-circuit, over-temperature, battery under voltage, battery overcharge
Transfer time 0 ms
Crest factor 3:1
Pure sine wave output
Automatic restart
Battery cold start function
Maintenance sealed lead acid battery
Advance Battery Management
Back up 15-30 mins (depend on loads)
Parallel redundancy
Extension battery (Optional)
Hardwired Terminal
Software monitoring
SNMP card (optional)
TISI standards 1291-2553(1),TISI standards 1291-2553(2), TISI standards 1291-2555(3),  ISO 9001, ISO 14001, CE, EN, FCC, RoHS
Onsite Service & PM  (According to company policy)


2 Years Warranty
Free Onsite Service at Bangkok Metropolitan Region *Conditions are as specified by the company
Pick-up and delivery of the repair product for free with express delivery.
Service Center has ISO 9001:2015


ZIRCON
The Smart Power Solution ✨​​​​​​​


​​​​​​​​​​​​​​

 Specifications

​​​​​​​

Input	Phase Rated Voltage Voltage Range Frequency Range Power Factor Current THDi Bypass Voltage Range ECO Range Generator Input	Single phase & Ground 380/400/415VAC (settable) +/- 25% 140-290V* 50Hz-60Hz (settable) +/- 0.1% >0.98 5% at 100% non-linear load Max, voltage; +5% (optional +5%, +10%, +25%) Min. voltage:-45% (oplional -20%,-30%, -45%) Frequency protection range: +/-10% same as the bypass Support
Output	Phase Rated Voltage Power Factor ​Voltage Regulation Frequency - Utility Mode                   - Battery Mode Crest Factor THD Wave Form	Single phase & Ground 220/230/240VAC 0.9 ​+/- 2% 50Hz/60Hz +/- 0.1% 50Hz-60Hz  +/- 0.02% Hz 3:1 < 2% with Linear Load < 5% with non  Linear Load Pure Sine Wave
Efficiency	AC Mode (full load) Battery Mode (full load) ECO Mode (tull load)	Up to 90% >88% ​>94%
Battery	Voltage Capacity (Standard unit) Backup Time Recharge Time to 90% Charging Current -Standard Battery Number Battery Socket	192-240 Vdc 12V/9Ah Full load 5 min, 15-30 min (Depend on load), Estimated remaining time display on the LCD 4-6 Hours 1A (S), 6A (H) 16/18/20 pcs (Settable) Anderson Like PowerPole Modular Connectors
Transfer Time		Utility to Battery; 0ms, Utility to Bypass <4ms
Protection	Overload   - AC Mode  - Batt. Mode  - Bypass Mode Short Circuit Overheat Battery Low Self-Diagnostics EPO Battery Noise Suppression	108%+/-5%<Load<150%+/-5% exceed 30s, cut off and alarm, 150%+/-5%<Load<200%+/-5% exceed 300ms, cut off and alarm 108%+/-5%<Load<150%+/-5% exceed 30s, tranfer to bypass and alarm, 150%+/-5%<Load<200%+/-5% exceed 300ms, tranfer to bypass and alarm" Load <100%-150%; 30S; Load >150%; 300ms then shutdown UPS completely Load >130%; 60S then shutdown output Hold Whole System Line mode; Switch to Bypass; Battery Mode, shutdown UPS immediately Alarm and Switch off Upon Power On and Software Control Shutdown UPS immediately Advanced Battery Management Compiles with EN962040-2
ALARM	Audible & Visual	Line Failure, Battery Low, Overload, System Fault
Display	Status LED & LCD Reading on the LCD	Load/Battery/Input/Output/Operating Mode information Load/Battery/Input/Output/Operating Mode information
Physical	Dimension(WxHxD) mm Weight (kg) Input Connection Output Connection External Battery Connection	250 x 655 x 590 85/40 hardwired hardwired Anderson like PowerPole Modular connectors
Communication Interface	Smart RS232/USB Port Communication Slot R.J45	Support Windows Family, Linux, FreeDSB, etc. SNMP Card (independent to RS232) Built-in Power Surge, Lightning Protection Device
Environment	​​Operating Temperature Storage Temperature Humidity Altitude Noise	0 °C - 40 ° C -25  °C - 55 °C 0-95% (Non-condensing) <1500 m. (derating while > 1500m) <55 dB (at 1 meter)
​Safety Conformance		CE
Industry Standard	Safety EMI EMS Surge ISO	​​Meet IEC62040-1 GB4943 IEC 62040-2 IEC 62040-2 Meeting IEC62040-1 1.2/50uS-8/20uS 6kV/3kA 9001 : 2015 , 14001 : 2015

All specifications subject to change without notice.
​​​​​​Custom-made specifications are acceptable.
​​​​​​​
​​​​​​​​​​​​​​

​​​​​​​

​​​​​​​
