True Online Double Conversion
TOWER DESIGN
Digital display LCD & LED
Wide input voltage range and frequency tolerance
Power factor 0.9
3 phase In, 1 phase Out
Multi-protections such as overload, short-circuit, over-temperature, battery under voltage, battery overcharge
Transfer time 0 ms
Crest factor 3:1
Pure sine wave output
Automatic restart
Battery cold start function
Maintenance sealed lead acid battery
Advance Battery Management
Back up 15-30 mins (depend on loads)
Extension battery (Optional)
Hardwired Terminal
Software monitoring
SNMP card (optional)
TISI standards 1291-2553(1),TISI standards 1291-2553(2), TISI standards 1291-2555(3),  ISO 9001, ISO 14001, CE, EN, FCC, RoHS
Onsite Service & PM  (According to company policy)


2 Years Warranty
Free Onsite Service at Bangkok Metropolitan Region *Conditions are as specified by the company
Pick-up and delivery of the repair product for free with express delivery.
Service Center has ISO 9001:2015


ZIRCON
The Smart Power Solution ✨

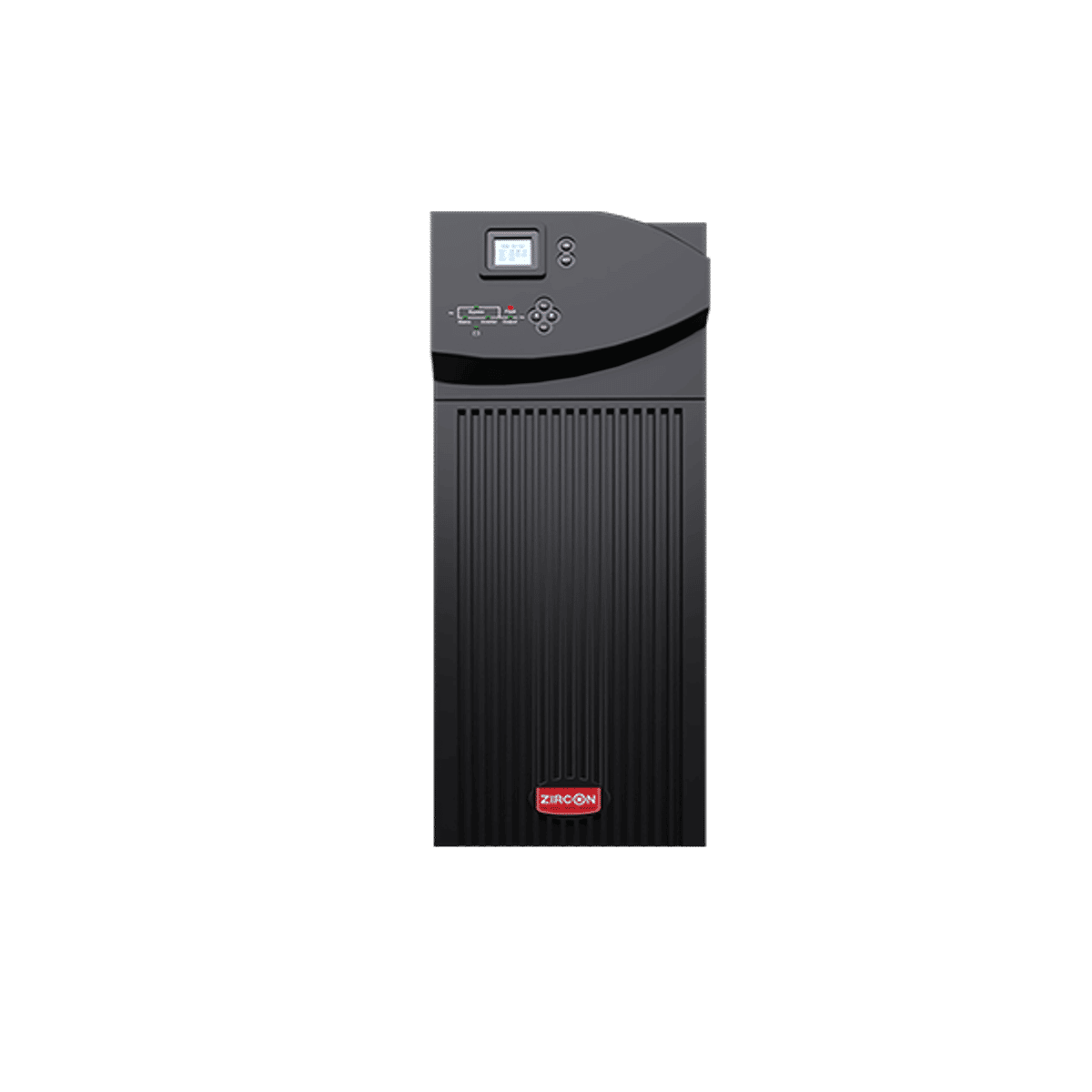

ZC-MP20kva ; 3:1P



Capacity	Capacity	20KVA/18KW
Type	Type	3ph/1ph
Input	Input mode Power Factor Rated voltage Rated frequency Bypass Voltage Range Bypass Voltage Range THDI	3phase 4 wires and ground 0.99 380/400/415VAC (settable)+/-25% 50Hz/60Hz (settable)+/-10% Max:+5%, +10% or +15%, default +5% Min:-20%, 30% or -45%, default -45% 5%(100% non-linear load)
Battery	Battery Number Charge model Charge Time Charge Current (A)	16/18/20/20pcs (settable) Boost charge or oat charge auto switch Boost charge up to 20Hr(Max) 1A (S), 6A (H)
Output	Output TYPE Output Precition Voltage distortion (THD) Voltage distortion (THD) Rated voltage Rating frequency Overload Overload Overload for bypass Peak value factor Efciency at normal	Single phase & Ground 1.0% Less than 2% at 100% linear lode Less than 5% at 100% non- linear lode 220/230/240VAC+/-2% 50Hz/60Hz+/-0.1% 110%3min, 125% 30 sec, 150% 1sec 150% shut down UPS immediately Breaker ( 10KVA:63A/15KVA:100A/20KVA:125A) 3:1 90%
Protection	Transfer time  Display Safety Max input voltage EMI EMS Surge	0ms LCD+LED Meet IEC62040-1 GB4943 320Vac, 1Hr IEC 62040-2 IEC 62040-2 Meeting IEC62040-1   1.2/50us-8/20us   6Kv/3Ka
Dimension	Capacity  KVA	10KVA/9KW
Display	Height Wight Depth	655 255 590
Net weight	(kg)	46kgs (H)

All specifications subject to change without notice.
​​​​​​Custom-made specifications are acceptable.
​​​​​​​​​​​​​​
​​​​​​​​​​​​​​

​​​​​​​

​​​​​​​​​​​​​​
