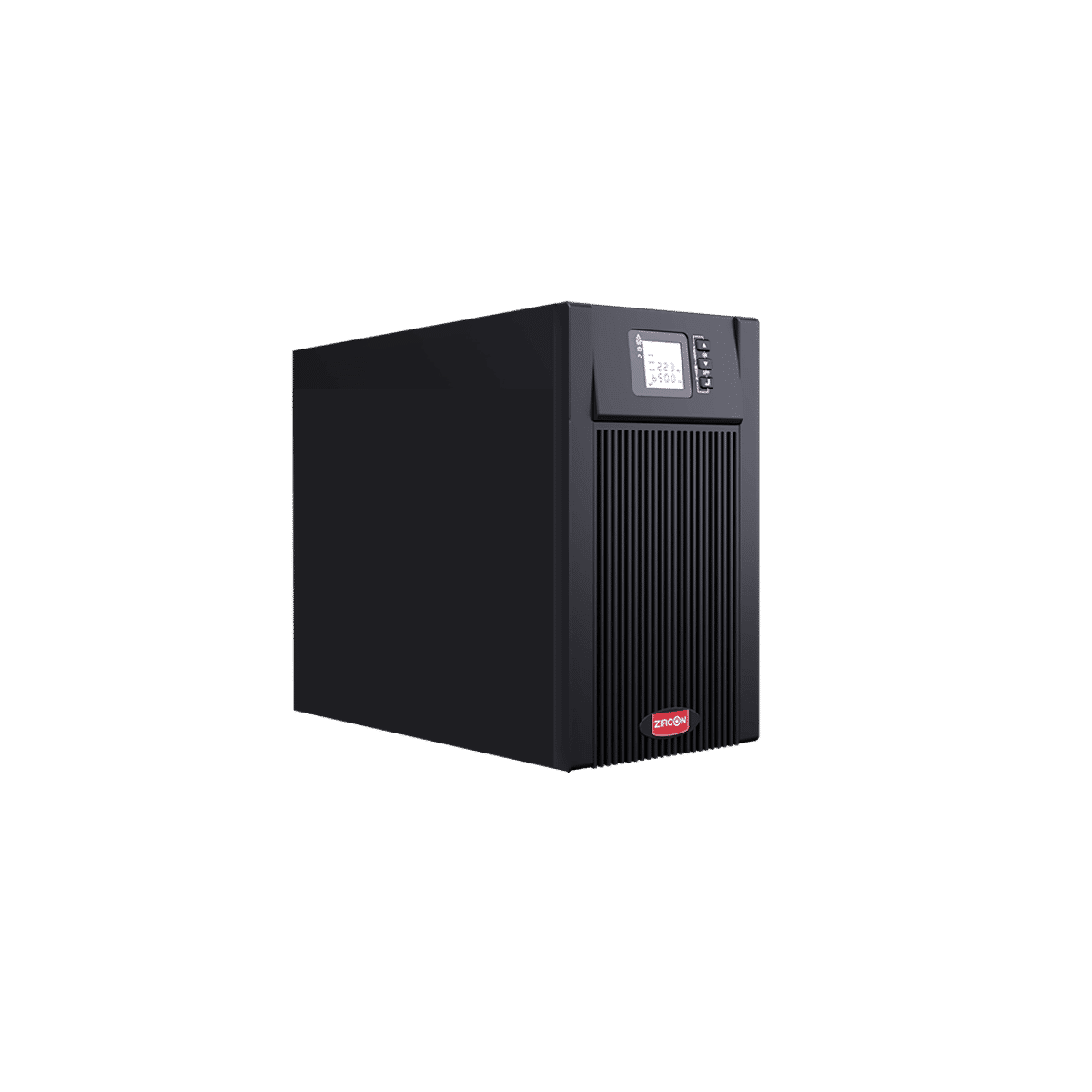

True Online Double Conversion
TOWER DESIGN
Digital display LCD & LED
Wide input voltage range and frequency tolerance
Power factor 0.9
1 phase In, 1 phase Out
Multi-protections such as overload, short-circuit, over-temperature, battery under voltage, battery overcharge
transfer time 0 ms
Crest factor 3:1
Pure sine wave output
Automatic restart
Battery cold start function
Maintenance sealed lead acid battery
Back up 15-30 mins (depend on loads)
Extension battery (Optional)
universal outlet
Software monitoring
SNMP card (optional)
TISI standards 1291-2553(1),TISI standards 1291-2553(2), TISI standards 1291-2555(3),  ISO 9001, ISO 14001, CE, EN, FCC, RoHS
Onsite Service & PM  (According to company policy)


2 Years Warranty
Free Onsite Service at Bangkok Metropolitan Region *Conditions are as specified by the company
Pick-up and delivery of the repair product for free with express delivery.
Service Center has ISO 9001:2015


ZIRCON
The Smart Power Solution ✨



ZC-MPII



Input	Model Capacity (VA/W) Phase Rated Voltage Voltage Range Frequency Range Power Factor Current THDi Bypass Voltage Range ECO Range Generator Input	3000VA 2700W Single Phase & Ground 200/208/220/230/240VAC 140-290V* 40Hz-70Hz (auto-detect) >0.99 @100% load (Nominal Input Voltage) <6% at 100% non-linear load Bypass high voltage point : 230-264 Vac (Setting in LC, Default: 264Vac) Bypass low voltage point : 170-230 Vac (Setting in LC, Default: 170Vac) Same As The Bypass Support
Output	Phase Rated Voltage Power Factor ​Voltage Regulation Frequency - Utility Mode                   - Battery Mode Crest Factor THD Wave Form	Single Phase & Ground 200/208/220/230/240VAC 0.9 ​​+/- 1% (Battery Mode) 50Hz or 60Hz (Synchronized to Mains) 50Hz-60Hz  +/- 0.02% Hz 3:1 < 3% with Linear Load < 5% with non  Linear Load Pure Sine Wave
Efficiency	AC Mode ( Full Load ) ​Battery  Mode ( Full Load ) ECO Mode ( Full Load )	Up to 90% >88% ​>94%
Battery	Voltage Capacity (Standard Unit) Back up Time Recharge Time to 90% Charging current    - Standard                             - Special	72Vdc 12V/9Ah Full load 5 min, 15-30 min (Depend on load), Long time depends on capacity of EBP 4 Hours recovery to 90% capacity (Typical) 1A 12A
Transfer Time		Utility to Battery; 0ms, Utility to Bypass <4ms
Protection	Overload   - AC Mode, Batt. Mode                   - Bypass Mode Short Circuit Overheat Battery Low Self-Diagnostics EPO Battery Noise Suppression	105%~110%: UPS shuts down after 10mins, 110%~130%: UPS shuts down after 1mins, >130%:UPS shuts down after 3 seconds 20A (input Breaker) Hold Whole System Line mode; Switch to Bypass; Battery Mode, shutdown UPS immediately Alarm and Switch off Upon Power On and Software Control Shutdown UPS immediately Advanced Battery Management Compiles with EN962040-2
ALARM	Audible & Visual Reading on the LCD	Line Failure, Battery Low, Overload, System Fault
Display	Status LED & LCD Reading on the LCD	Input/Output Voltage, Frequency, Temperature, Load/battery Level, Charger, Load Capacity, Battery Voltage, Overload, ECO, Warning, Bypass, Battery, Inverter, ETC.
Physical	Dimnsion (WxHxD) mm. Weight (Kilogram) Input Connection Output Connection External Battery Connection	440 x 86.5 x 696 18.1 IEC320 C14-10A Universal x 6 IEC320 C19-16A x1 Anderson like PowerPole Modular connectors
Dimensions	WxDxH (mm.)	191 x 337 x 460
Communication Interface	Smart RS232/USB Port Communication slot RJ 45	Support Windows Family, Linux, FreeDSB, etc. SNMP Card (independent to RS232) Built-in Power Surge, Lightning Protection Device
Environment	Operating Temperature Storage Temperature Humidity Attitude Noise	0 °C - 40 ° C -25  °C - +55 °C 0-90% non-condensing <1500 m. (derating while > 1500m) <50 dB (at 1 meter)
Standards	Safty EMC ISO	IEC/EN62040-1, IEC/EN60950-1 IEC/EN62040-2, IEC61000-4-2, IEC61000-4-3, IEC6100-4-4 IEC61000-4-5, IEC61000-4-6, IEC61000-4-8 ISO9001, ISO14001



All specifications subject to change without notice.
Custom-made specifications are acceptable.

​​​​​​​
​​​​​​​

​​​​​​​

​​​​​​​

​​​
